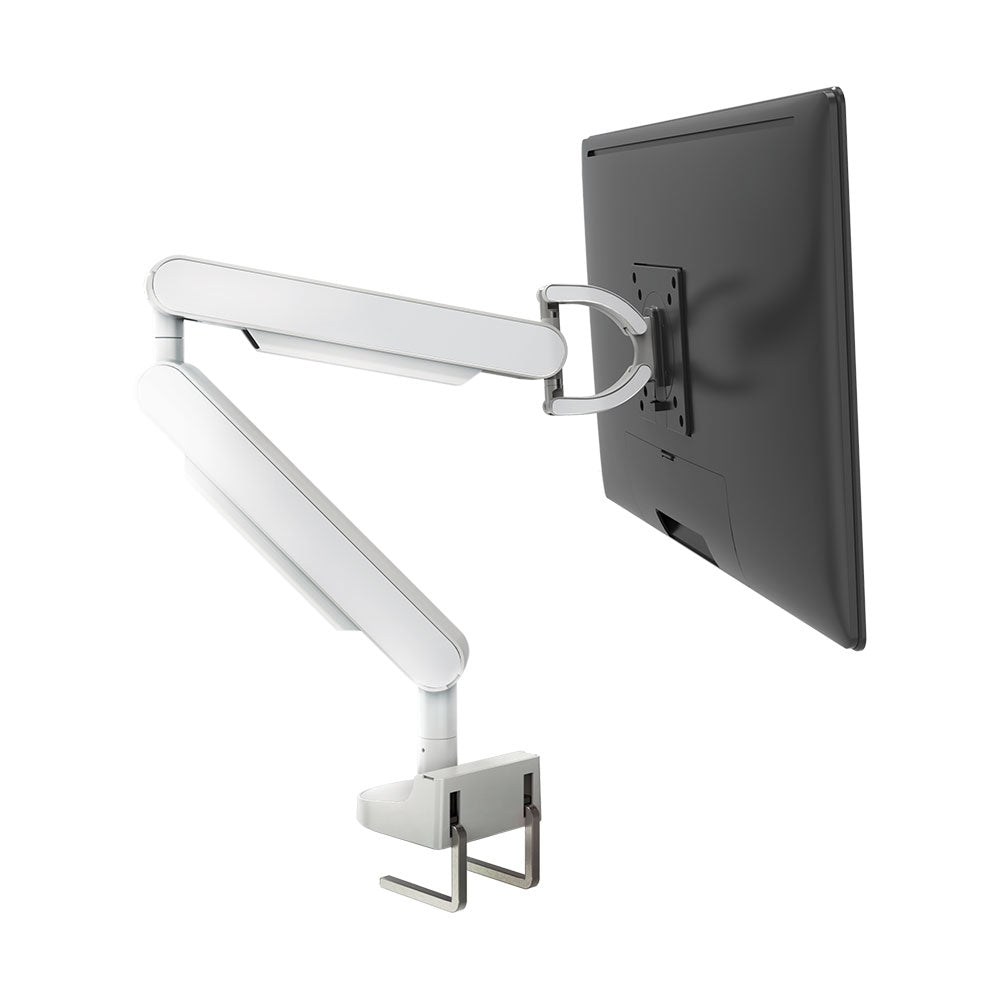

Zgonic ZG1 Monitor Arm




With its innovative design and cutting edge technology, Zgonic ZG1 sets a precedent in bringing an ergonomic experience to discerning users. It has highly flexible adjustments to fit you comfortably. Convenience and ease of installation without the need to install from under the desk.

Maximise your viewing comfort and improve productivity. With its multi-adjustment capabilities including height adjustability, tilt, swivel and pivot, Zgonic lets you move the monitor to your desired position and collaborate with ease.

Features

Latest Spring Technology
Zgonic's spring is compressed to provide a balancing force against the monitor weight (ranging from 2 kg to 11 kg). Zgonic monitor arm allows the monitor to "float" and to be adjusted effortlessly and continuosly.

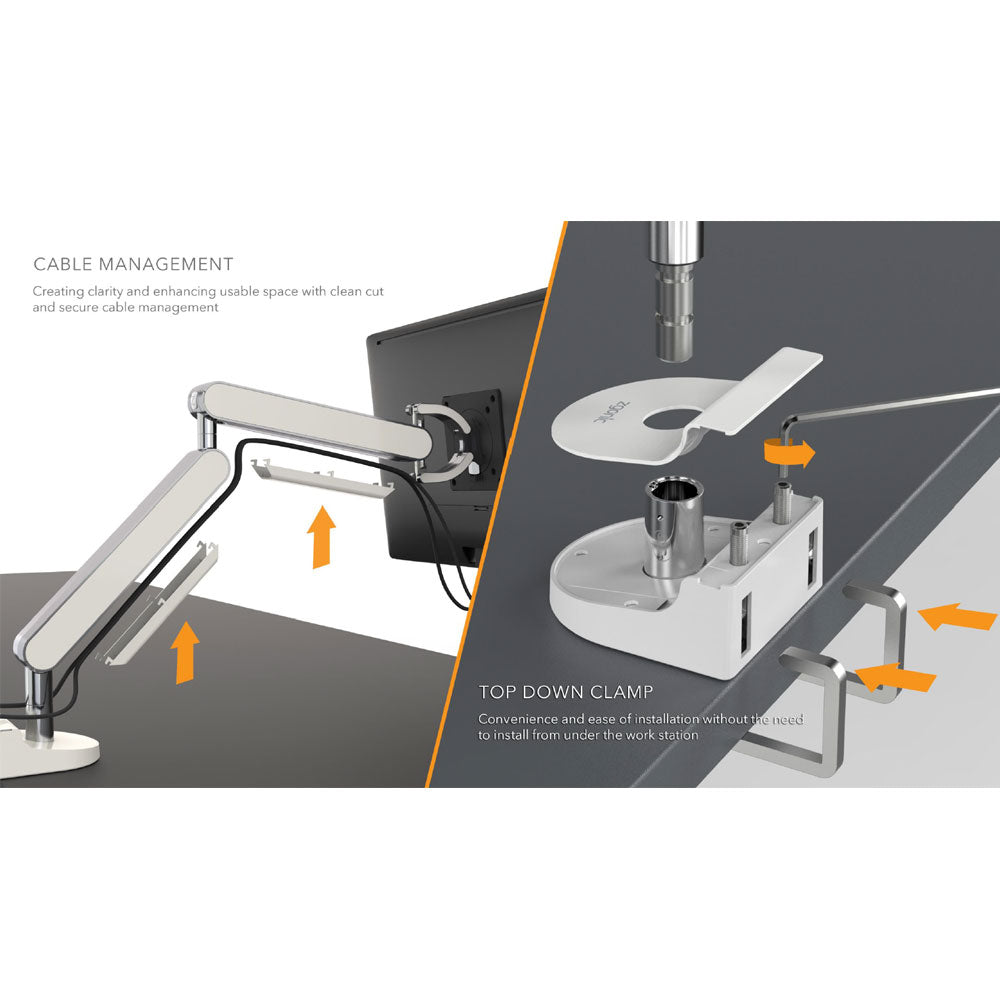

Cable Management
Creating clarity and enhancing usable space with clean cut and secure cable management

Unparalled Usability
Zgonic monitor arm is unique "four bar" mechanism provides smooth and frictionless tilt to create glare free viewing on the screen.

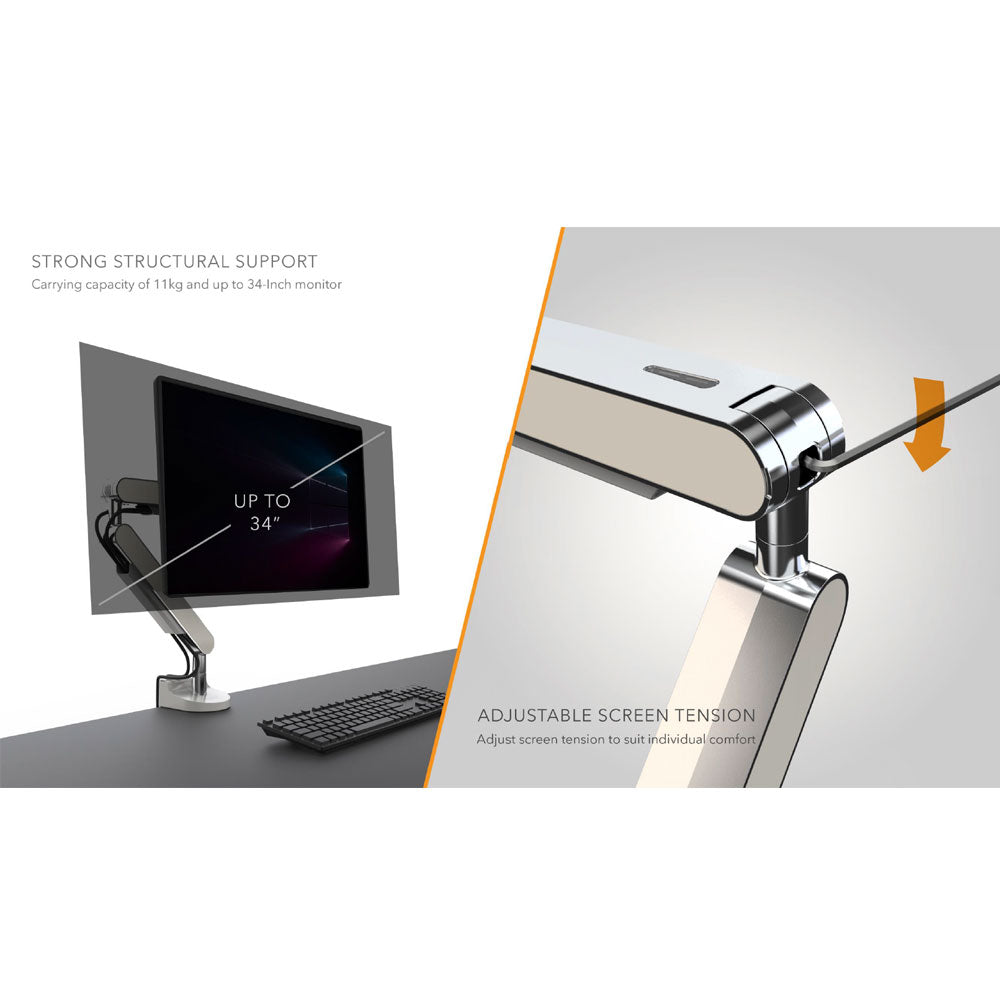

Adjustmentable Screeb Tension
Adjust screen tension to suit individual comfort.

Spring Tension Indicator Gauge
Zgonic monitor arm has a spring compression gauge which allows pre-setting of the calibration, faster installation and lower labout cost.

Quick Release Mounts
Zgonic monitor arm offers two quick release mechanisms enabling rapid screen interchange or alternatively replacement of the screen with a laptop.

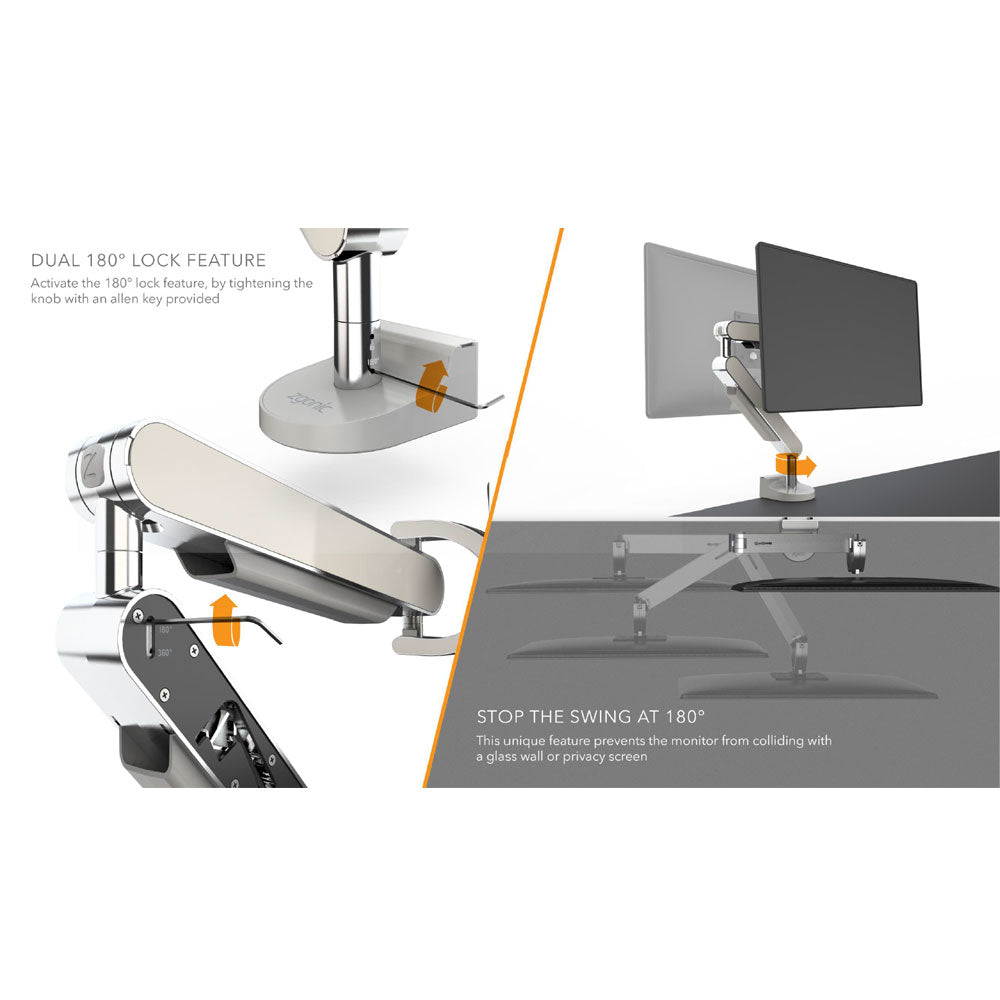

Dual 180° Lock Feature
Activate the 180° lock feature, by tightening the knob with an allen key provided.

Stop the Swing at 180°
This unique feature prevents the monitor from colliding with a glass wall or privacy screen.

Concealed Tools
Smarter way to store adjustment tools. Hidden under the flexible magnetic colour panels.

Top Down Clamp
Convenience and ease of installation without the need to install from under the desk.

Warranty
Limited 10 years

Specifications
Weight Capacity   3 kg to 11 kg
LCD Size   17" to 30" (Monitor size for reference only, weight should be the key factor)
Tilt   -35° to +20°
Rotation   360° for portrait or landscape viewing

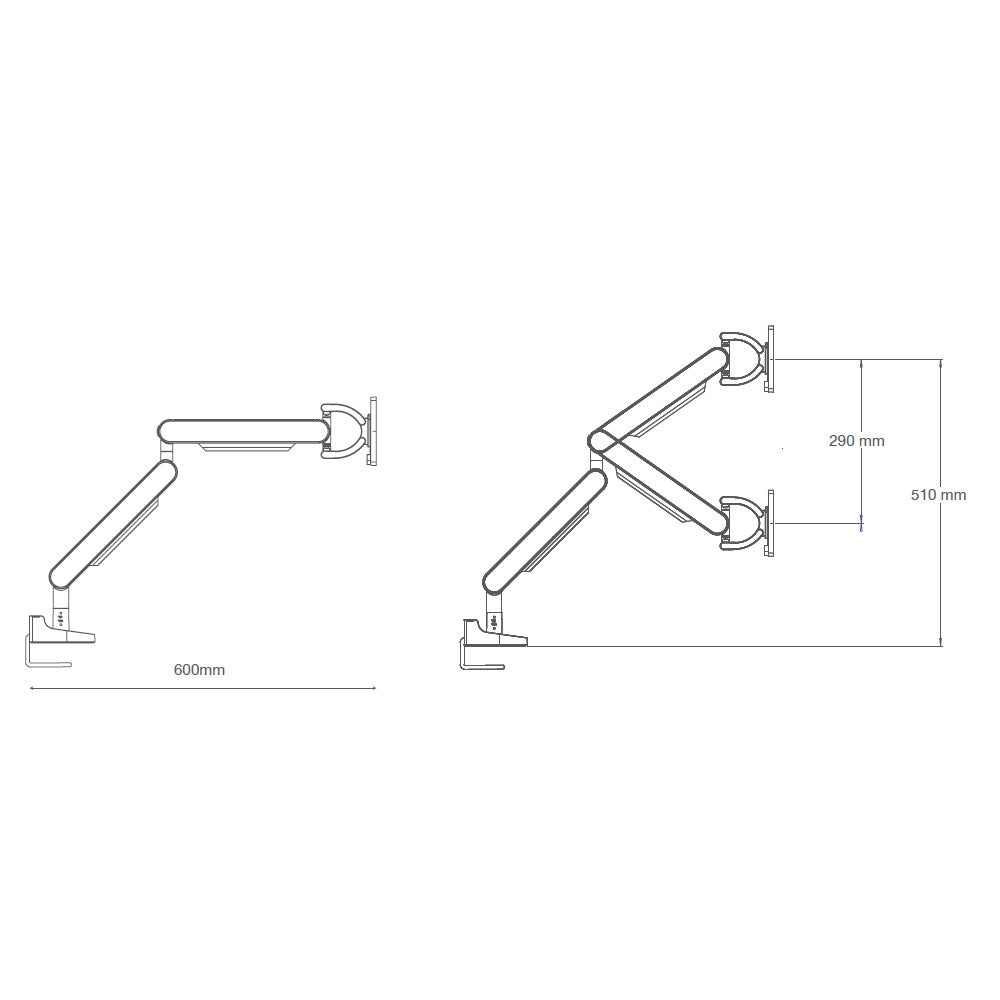

Arm Reach   600 mm
Height Adjustment Range   290 mm
Mounting   Desk Clamp attaches to surface edge 16 to 50 mm thick.
Display Compatibility   VESA 75/100mm



Downloads
Download Product Info
Product Info
Download Installation Guide
Installation Guide
