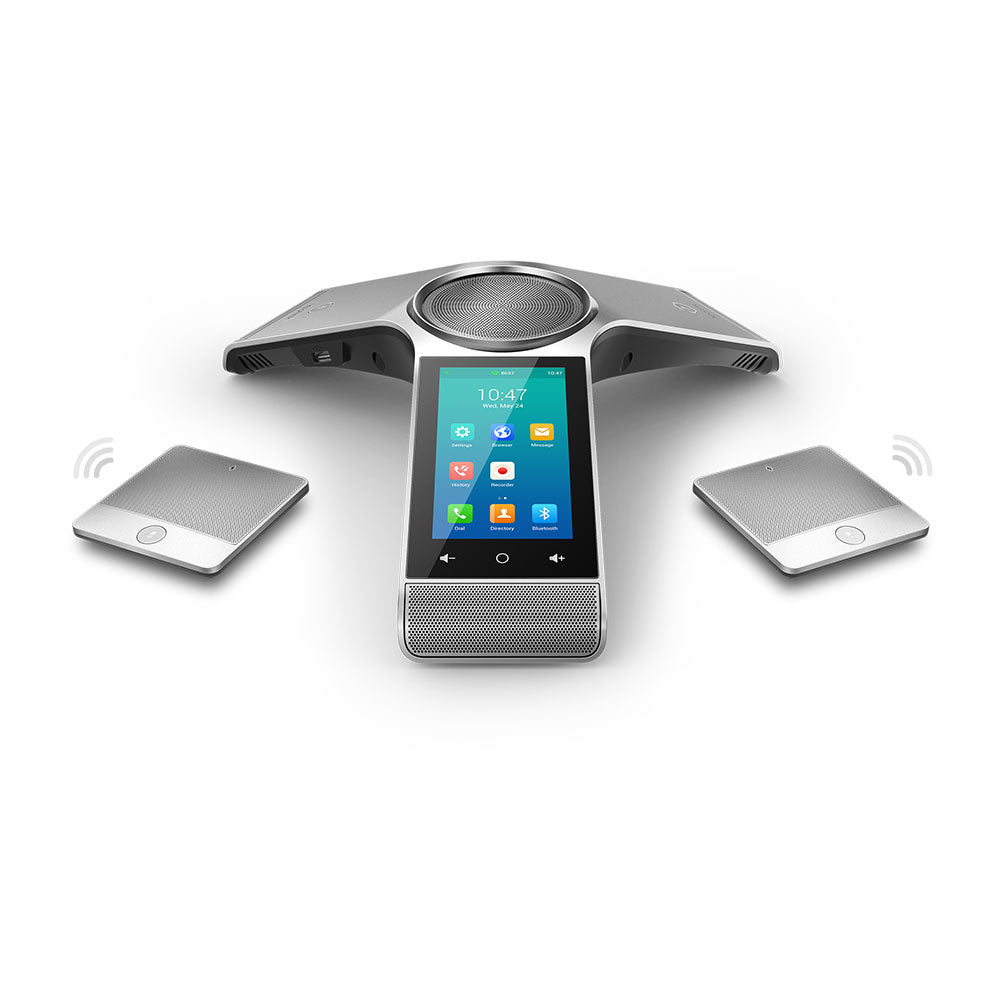

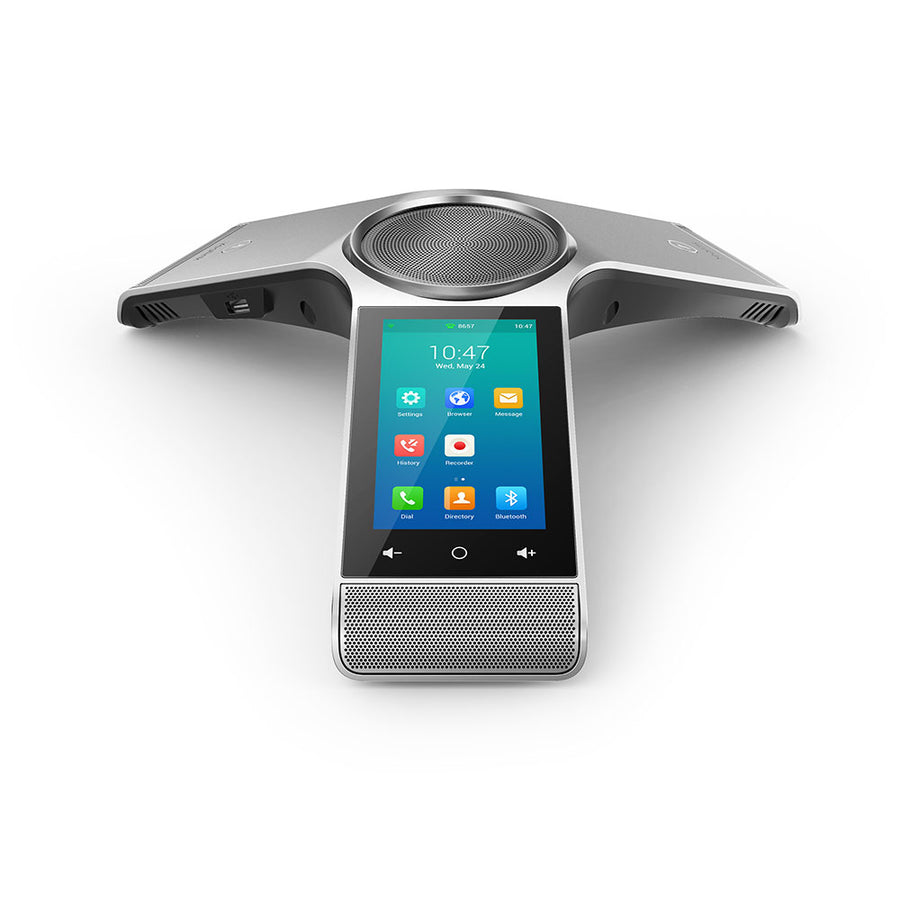

The Yealink CP960 Conference Phone with two wireless microphones is an Android-based voice conferencing unit that allows medium to large conference phones the ability to communicate with crystal-clear audio quality. You can add an external microphone or connect wired and/or wirelessly with smartphones, PC's, tablets via Bluetooth or using a Micro-B USB cord.

Features

This Y-shape conference phone features an elegant design that makes it easy to pick up the audio in the room all while eliminating ambient noises and noise with noise-cancellation technology. With the CP960 up to five parties can join a conference call from different locations.

In Yealink Pentagon Meeting Room, you can create a meeting directly and invite or allow someone to join the ongoing meeting seamlessly. Its Active Speaker feature helps you easily recognize who is speaking during the meeting. Pairing the Yealink CP960 with your smartphone via Bluetooth or with your PC/tablet via USB Micro-B port allows you to turn the Yealink CP960 into a loudspeaker or microphone with ease. In addition, after successfully pairing, you can merge all these three devices, your smartphone, PC/tablet and IP conference phone CP960, into one hybrid UC meeting. The CP960 can also be used in a large training room by connecting it to an external loudspeaker via 3.5mm audio-out port; and it supports local and USB call recording, local available recording time is up to 100 hours.

• Optimal HD audio, full duplex technology
• Yealink Noise Proof Technology
• 20-foot (6-meter) and 360-degree microphone pickup range
• Two additional CP Wireless Expansion Mic CPW90
• Built-in 3-microphone array
• Based on Android 5.1 operating system
• 5-inch multi-touch screen with 720x1280 resolution
• Yealink Pentagon Meeting Room
• 5-way conference call
• Hybrid UC meeting
• Built-in Wi-Fi (2.4GHz/5GHz, 802.11.b/g/n/ac)
• Built-in Bluetooth 4.0
• Connect to PC via USB Micro-B port

Audio features
• Optimal HD audio
• Yealink Noise Proof Technology
• 20-foot (6-meter) microphone pickup range
• Apply to medium to large conference room
• Built-in 3-microphone array, 360-degree voice pickup
• 56mm diameter and 10w speaker
• Full-duplex speakerphone with AEC
• Echo cancellation tail length is up to 320ms
• Background noise suppression
• Codecs: G722, G722.1C, G726, G729, G723, iLBC, Opus
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• VAD, CNG, PLC, AJB, AGC

Phone features
• 1 VoIP account
• Call hold, mute, DND, call recording, hotline
• 5-way conference call
• Redial, call waiting, emergency call
• Call forward, call transfer, call return, dial plan
• Ring tone selection/import/delete
• Set date time manually or automatically
• Volume adjustment
• Pairing via Bluetooth/USB Micro-B port
• External speaker connection via 3.5mm audio-out port
• Create meeting directly
• Join meeting seamlessly
• Active

Directory
• Local phonebook up to 1000 entries
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
• Black list

IP-PBX features
• Intercom
• Multicast paging
• Anonymous call
• Anonymous call rejection
• Voice mail
• Distinctive ringtone
• Call pickup

Specifications

Display
• 5” 720x1280 capacitive touch screen
• Volume key
• Home button

Interface
• 1 x RJ45 10/100M Ethernet port
• Built-in Wi-Fi (2.4GHz/5GHz, 802.11.b/g/n/ac)
• Built-in Bluetooth 4.0
• Power over Ethernet (IEEE 802.3af ), class 4
• 2 x Wired MIC port
• 2 x USB 2.0 port
• 1 x 3.5mm audio-out port
• 1 x USB 2.0 Micro-B device port
• 1 x Security slot

Network and security
• SIP v1 (RFC2543), v2 (RFC3261)
• SIP server redundancy supported
• IPv4/IPv6
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• SRTP for voice encryption
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X

Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069, SNMP
• Reset to factory, reboot
• Package tracing export, system log

Other physical features
• External Yealink PoE adapter (optional)
• Power consumption (PoE): 5.25w-12.3w
• Dimension (W*D*H): 338mm*338mm*74mm
• Operating humidity: 10~90%
• Storage temperature: -10~40°C (+14~104°F)

Package features
• Package content:
- Yealink CP960 IP conference phone
- Ethernet Cable (7.5m CAT5E UTP cable)
- Wireless Microphone CPW90 (Optional)
- Wired Microphone CPE90 (Optional)
- Quick Start Guide
- Yealink PoE Adapter YLPOE30 (Optional)
• Qty/CTN: 4 PCS
• N.W/CTN: 5.6 kg (CP960) 10.4 kg (CP960-WirelessMic)
• G.W/CTN: 8.4 kg (CP960) 11.6 kg (CP960-WirelessMic)
• Giftbox size: 405mm*392mm*141mm
• Carton Meas: 589mm*401mm*421mm

Video Conferencing

Yealink CP960 Touchscreen Android Conference Phone with Wireless Mics
