Make your own - Multi display configuration

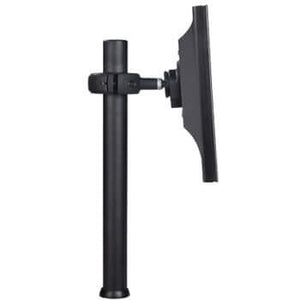

The Spacedec Display Pole is a simple, flexible and configurable desk mounting system for flat screen LED and LCD monitors. The pole comes in multiple heights, with each supplied with a Quickshift Donut to enable display attachment. Additional Donuts can be added to support more displays depending on the combined screen weight and pole rating. Designed for commercial, retail and manufacturing applications, the system features integrated cable management and tension control for POS and touchscreen operation.

Quickshift display Donuts are independantly adjustable for height position and rotation around the pole. They feature Quick Attachment heads for easy screen attachment/ replacement and an integrated ball-joint which allows for independant pan and tilt adjustment as well as portrait to landscape screen rotation. A security screw is supplied with each to help prevent unauthorised screen removal.

The Display Pole system is designed for screens with a standard VESA mounting hole pattern (refer specifications below). It ships with display and desk attachment hardware.

ATDEC Spacedec Display Pole is available in three different lengths - 420mm, 750mm and 1150mm. Spacedec Display Pole comes with one Quick Shift Donut to guarantee a customized display installation. For multi display configuration you can add more donuts.

Additional Donuts are available here.

Features

Flexible mounting

Designed for screens 12" (30.5cm) or larger
Each Pole type is supplied with one Donut display attachment
Additional Donuts can be added separately
Each Donut supports displays weighing up to 12kg (26.5lbs)
Each pole can support a different combined total weight
Poles support both internal and external cable management
Poles can be installed on desks up to 38mm (1.5") thick

Enhanced positioning adjustment

Donuts feature a Quickshift operation for easy user adjustment
Donuts are independantly height adjustable
Donuts can be independantly rotated around the pole

Enhanced viewing adjustment

Donuts feature an integrated ball-joint mechanism with adjustable tension control
Donuts allow full 360º screen rotation
Donuts allow +/-20º tilt adjustment
Donuts allow +/-20º pan adjustment

Easy to Install

Donuts feature a Quickshift head for easy display installation/ replacement and come with a security screw
Donuts support displays with standard VESA mounting hole configurations 75x75mm & 100x100mm (WxH)
VESA 200x100mm mounting configurations are supported via an optional adaptor plate
Poles are supplied with one Donut, installation guide, display mounting hardware, desk clamp and bolt through pole attachment hardware

Durable Design

Steel and aluminium construction with quality matt powdercoat finish
10 year warranty if purchased after Jan 1, 2011

Model Option

420mm (16.5") Pole with 12kg (26.5lbs) Max weight rating (SD-DP-420)
750mm (29.5") Pole with 24kg (53lbs) Max weight rating (SD-DP-750)
1150mm (45.25") Pole with 36kg (79.5lbs) Max weight rating (SD-DP-1150)
