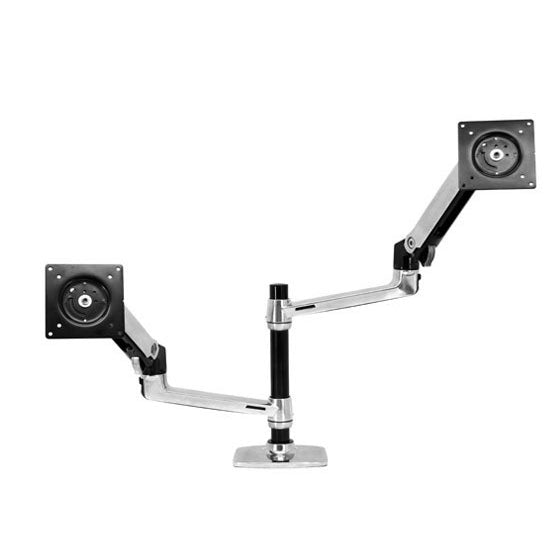

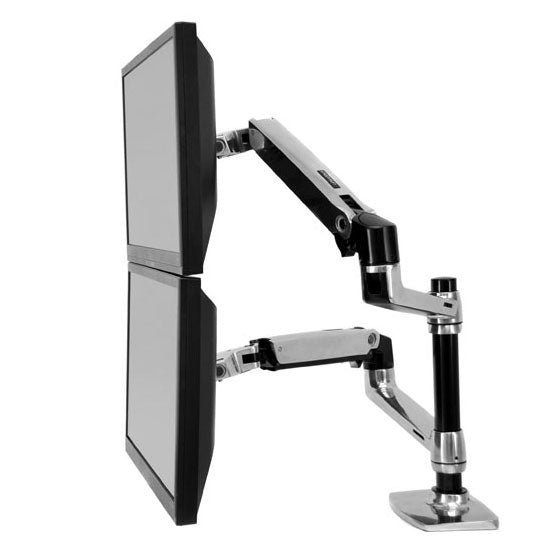

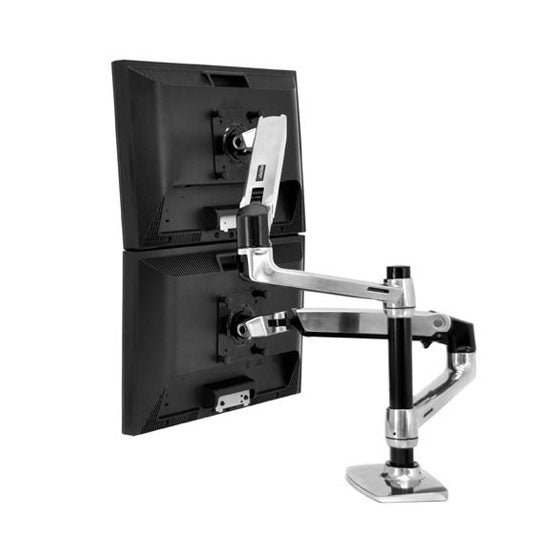

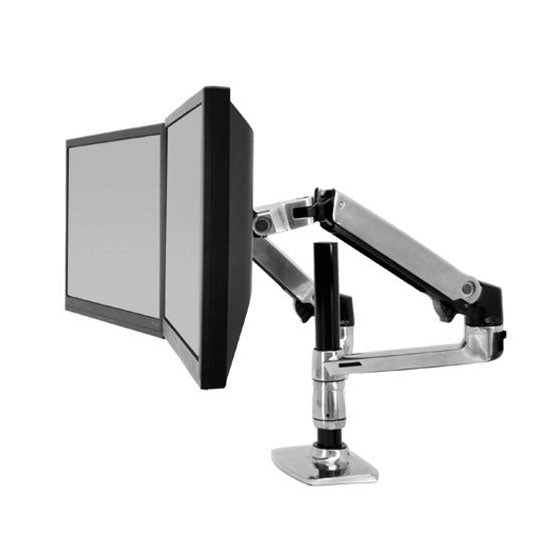

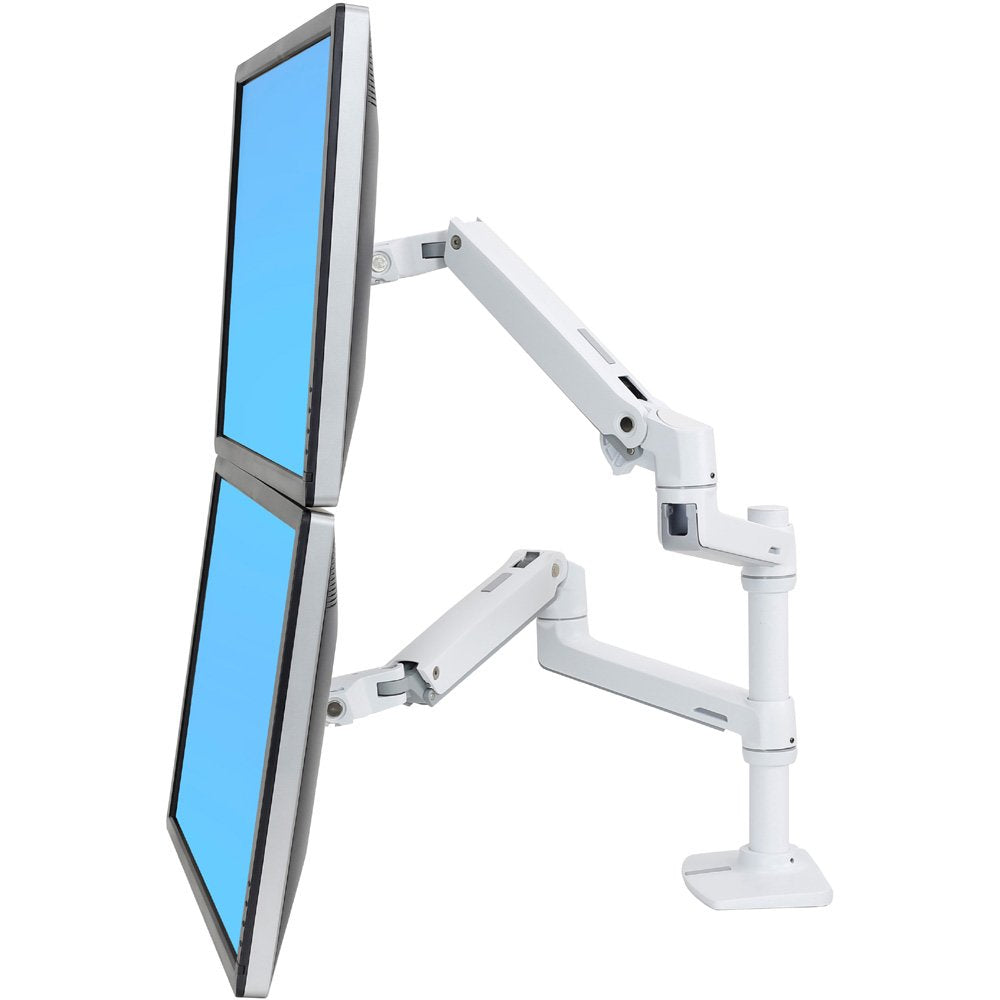

LX Dual Stacking Monitor Arm
LX Dual Stacking Monitor Arm LX Dual Stacking Monitor Arm LX Dual Stacking Monitor Arm LX Dual Stacking Monitor Arm LX Dual Stacking Monitor Arm LX Dual Stacking Monitor Arm LX Dual Stacking Monitor Arm

LX Dual Stacking Monitor Arm

$525.00

Continue Shopping or View Cart

Collections: Dual Monitor Arms, Monitor Arms

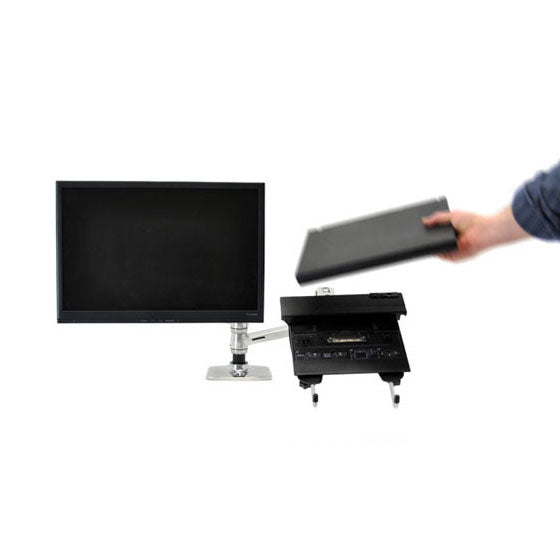

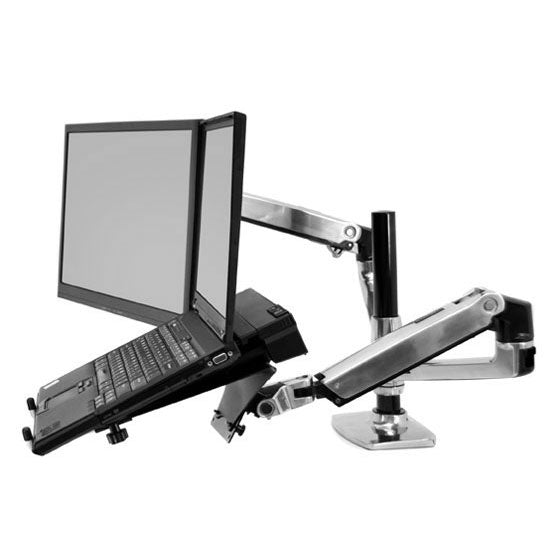

Durable polished aluminum construction! Use this ingenious tool with your notebook and an external LCD or with two LCDs. Create a productive multi-display configuration that lifts screens up to where they’re easier to see while reclaiming valuable worksurface.

Features

Includes two (2) LCD arms and extensions, pole, desk clamp and grommet mount, one (1) notebook tray, notebook fastening kit (you choose: Velcro, non-slip pad or clips)

Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Snap-fit cap secures interface of arms to extensions for greater stability
  • New clamp and grommet mount base ensures greater stability of display and arm
Specifications
Weight Capacity 3.1 - 9.1 kg per arm
LCD Size ≤ 24"†
Tilt 75°
Rotation 360° for portrait or landscape viewing
Material High quality aluminum alloy
Pan 360°
Lift 330mm
Display Compatibility VESA 75/100mm



Desk clamp attaches to edge up to 66 mm thick; grommet mount attaches through hole 7–51 mm wide and up to 80 mm thick.

† To facilitate stacking of monitors, maximum outside height of display can be no more than 14" (35 cm). Most monitors with screens of 24" or less fit within this specification. Larger screen sizes are allowable when positioning displays side by side

* Weight Capacity: Maximum individual LCD weight = 3.1 to 9.1 kg; notebook weight range = 1.1–5.4 kg; maximum combined weight = 18.1 kg. Monitor depth may affect weight capacity.

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Technical Drawing
For technical drawing please view in gallery or download PDF file.

Download
Download Product Info
 Product Info
Download Illustration
 Illustrations
Download Installation Guide
 Installation Guide
